Description
Product Details:

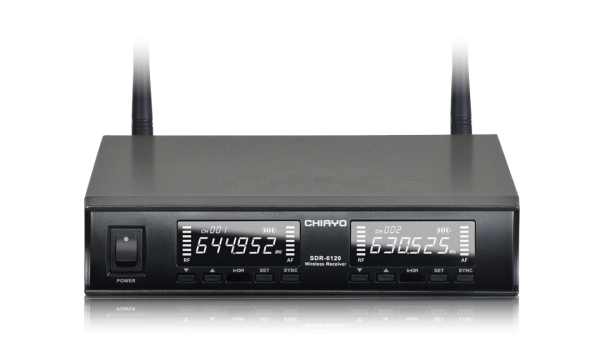

| Model | SDR-6120 IrDA |
| Chassis | EIA standard 19″ metal 1/2U |
| Receiving mode | Diversity |
| Frequency range | UHF 500 – 960 MHz |
| Bandwidth | 25 MHz |
| Channel | Dual |
| Preset frequencies | 100 |
| Channel sync | 2-way (RX ⇔ TX) |
| Frequency response | 50 Hz – 18 KHz |
| Peak deviation | ± 40 KHz |
| Sensitivity | S/N > 80 dBm at 10 dBμV |
| S/N ratio | > 110 dB(A) |
| T.H.D. | < 0.5% @ 1 KHz |
| Receiving antenna | Detachable at rear-end, TNC female. |
| Oscillation | PLL synthesized, frequency stability ± 0.005% (-10 – +60°C) |
| Squelch | Pilotone & Noise-cancelling dual-squelch circuit |
| Audio connector | Balanced XLR and unbalanced Ø6.3mm |
| Audio Output Adjustment | Gain control circuit for adjustment of output volume |
| Output level switch | MIC-LINE |
| Power supply | 12V DC / 1.0A |
| Dimensions (mm) | 200 x 150 x 44 |
| Weight (kg) | 0.73 |
