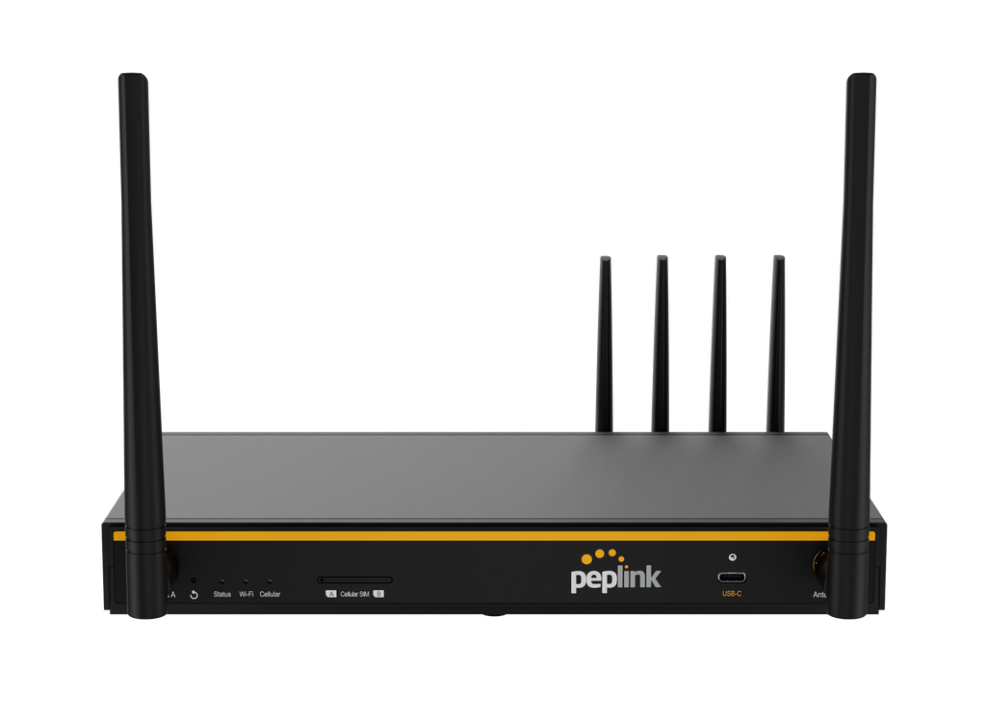

Peplink B One 5G

Description

Peplink B One 5G – Key Specifications

• WAN Interfaces:

  • 2× Gigabit Ethernet WAN ports

  • 1× Embedded 5G/LTE cellular modem with redundant Nano-SIM slot

  • 1× USB-C port (usable for USB WAN or device power)

• LAN Ports:

  • 4× Gigabit Ethernet LAN ports

• Wi-Fi:

  • Simultaneous dual-band Wi-Fi 6 (2.4 GHz + 5 GHz), 2×2 MIMO

  • Supports both Wi-Fi AP and Wi-Fi as WAN modes

• Performance:

  • Router throughput up to 1 Gbps

  • SpeedFusion VPN throughput: 400 Mbps (no encryption), 200 Mbps (256-bit AES)

• SpeedFusion Features:

  • Includes hot failover, WAN smoothing, and bandwidth bonding

  • Supports up to 5 VPN peers (with PrimeCare subscription)

• Recommended Users & AP Support:

  • Ideal for 1–150 users

  • AP Controller supports up to 30 APs (expandable to 50 with license)

• Cellular Performance:

  • 5G (NR): up to 3.4 Gbps down / 900 Mbps up

  • LTE Cat-20: up to 1.6 Gbps down / 200 Mbps up

• Antennas & SIM Support:

  • 4× SMA cellular antenna connectors

  • 2× RP-SMA Wi-Fi antenna connectors

  • Supports Nano-SIM, Peplink eSIM, and BYO eSIM (2 profiles)

• Power & Physical:

  • Input: 10–30 V DC or via included AC adapter (100–240 V → 12 V DC)

  • Power draw: ~7 W nominal, up to ~19 W max (without USB-C load)

  • Dimensions: 10.31″ × 6.33″ × 1.31″

  • Weight: approx. 1.7 lb (756 g)

• Environmental Specs & Certifications:

  • Operating temperature: –40 °F to 113 °F (–40 °C to 45 °C)

  • Humidity: 10%–90% (non-condensing)

  • Certifications: FCC, CE, RoHS

• Package Includes & Warranty:

  • Includes: B One 5G unit, 4× LTE/5G antennas, 2× Wi-Fi antennas, 12 V/3 A power supply

  • Backed by a 1-year limited warranty
